Width	600-1500mm, usually 1250mm,1000mm,1240mm,1500mm,914mm,750mm and so on.
Grade	SGCC, CGCC, SGCH, DX51D+Z/DX53D+Z/S220GD-550GD
Thickness	0.13-0.70mm
Width	Max1250mm(600-1250mm)
Length	By coil
Base Material	GI / GL / PPGI / PPGL
Zinc Coating	40g/㎡ to 275g/㎡
Color	RAL NO. / Your samples
Paint Top(microns)	10-25 microns
Paint Back (microns)	3-20 microns
Coil ID	508/610 mm
Packing	Waterproof paper+plastic film+iron packing+bundling, or customized
Application	Corrugated roofing sheet, ceiling channel, industrial refrigeration, cold storage, door panel, sandwich panel, PU panel

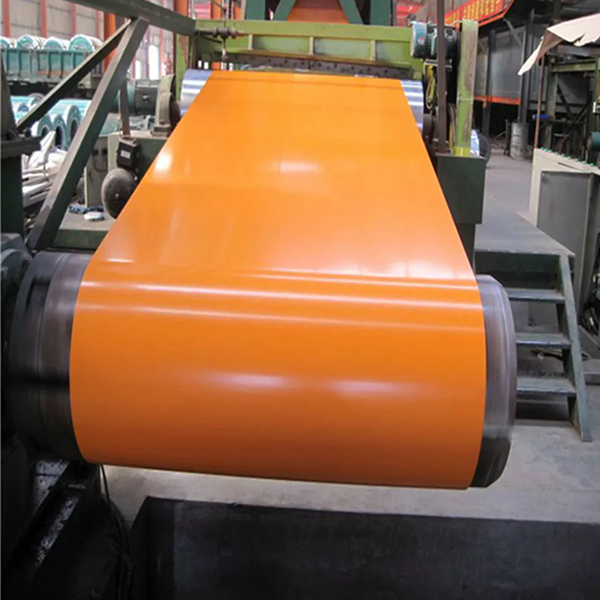

  Description:Color coated coil is hot galvanized plate, hot galvanized aluminum zinc plate, galvanized plate and other substrates, the surface pre-treatment (chemical decreasing and chemical conversion treatment), on the surface coated with a layer or several layers of organic coating, and then after baking curing products. Because coated with a variety of different colors of organic paint color steel coil plate named, referred to as color coated coil.
